JSY Laser

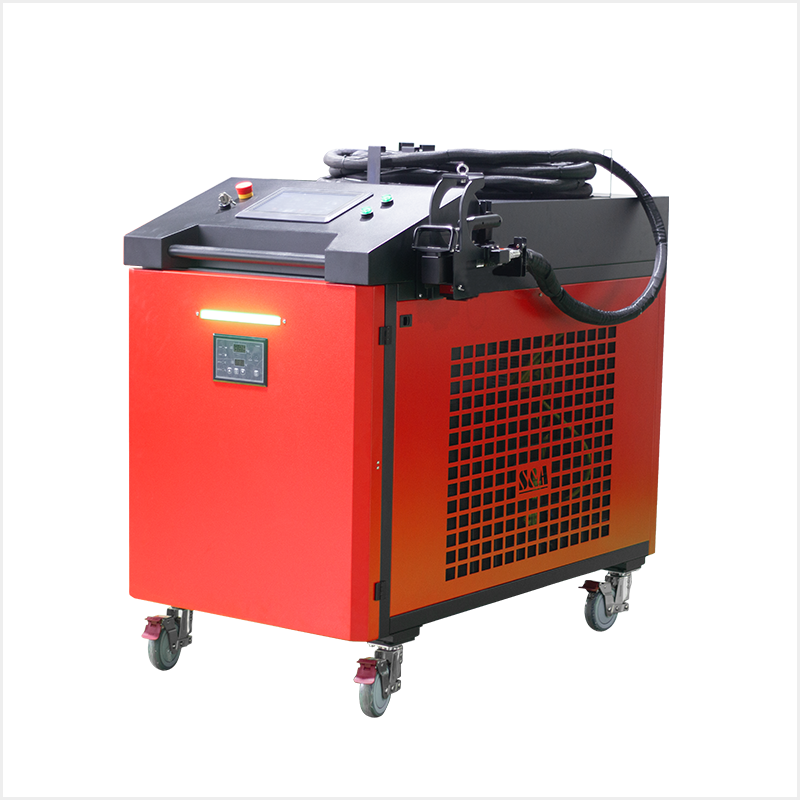

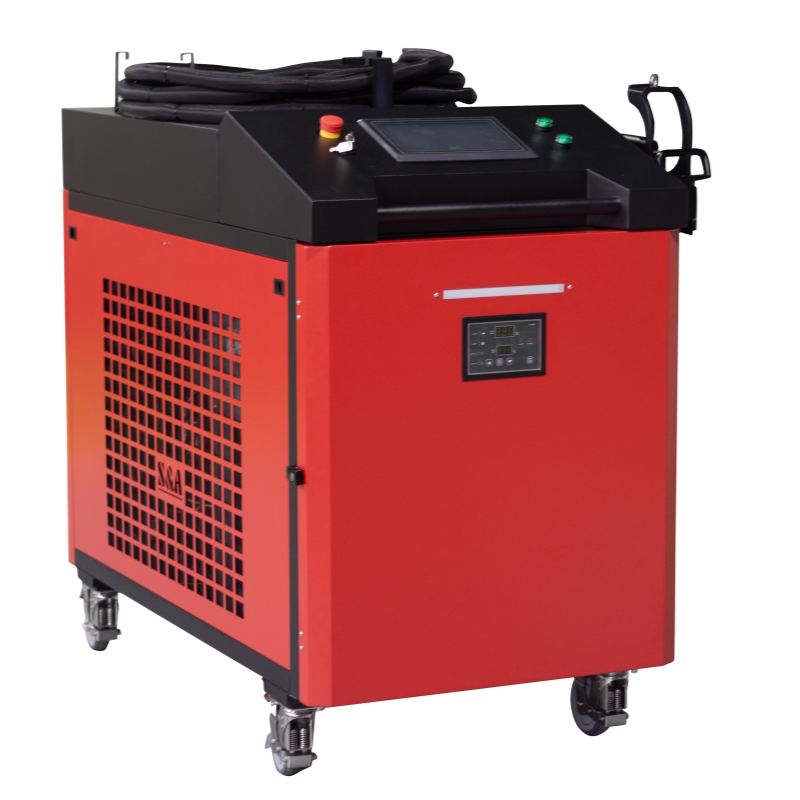

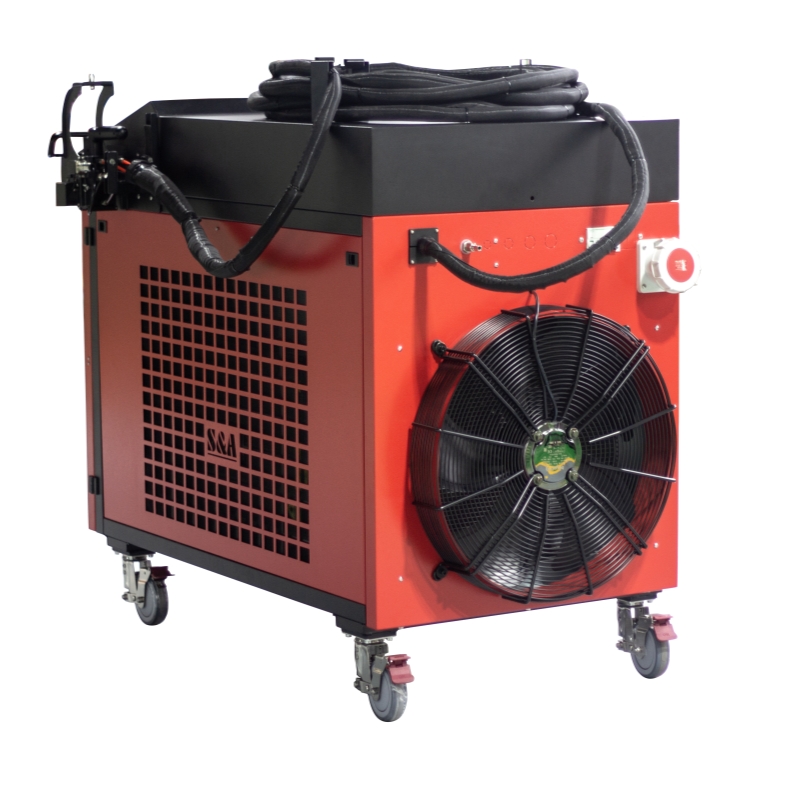

Handheld 6000W CW Laser Cleaning Machine
Handheld 6000W CW Laser Cleaning Machine
The 6000W Laser Cleaning Machine is a high-performance industrial-grade solution designed for precision cleaning, rust removal, and surface preparation across diverse applications. Combining advanced laser technology with ergonomic design, this system delivers unmatched efficiency, reliability, and ease of operation. Ideal for heavy-duty industrial environments, it eliminates the need for abrasive chemicals or mechanical grinding, offering an eco-friendly and cost-effective alternative.
Key Features
High-Power Laser Source
6000W Laser Output: Ensures rapid cleaning of large surface areas and stubborn contaminants (e.g., rust, paint, oxides) with minimal thermal impact on substrates.
Fiber Laser Technology: Provides stable energy output, long service life, and low maintenance requirements.
Ergonomic Design for Extended Operation

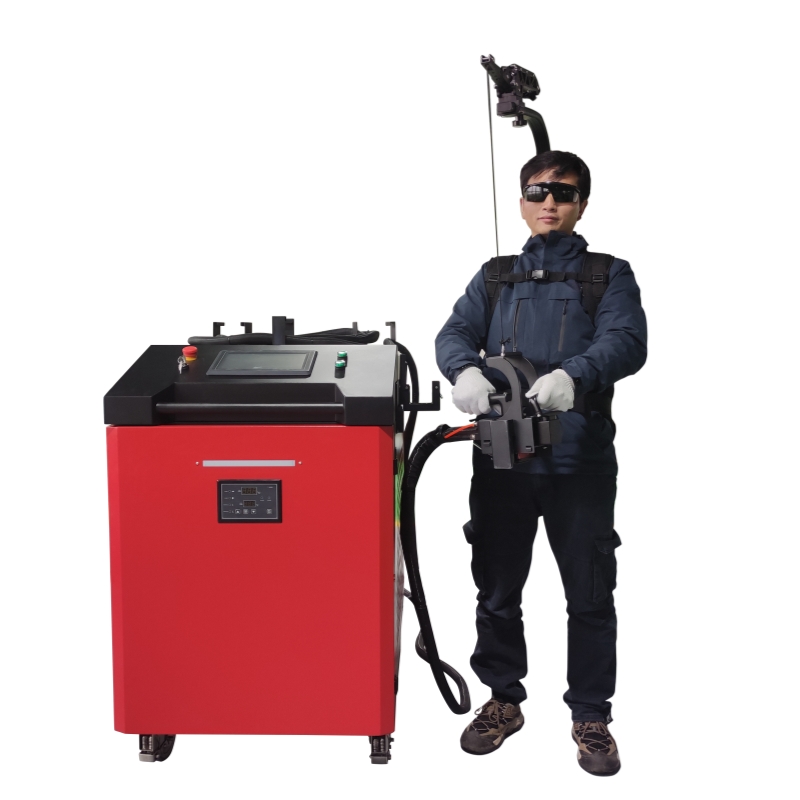

Lightweight Cleaning Gun (3.5 kg): Reduces operator fatigue during prolonged use.
Integrated Counterbalance Arm (Balancer): Compensates for the weight of the cleaning gun, enabling stable and precise control over long shifts.
Extended Reach & Flexibility
Max Cleaning Length: 6000 mm: Accommodates large-scale workpieces or complex geometries without repositioning the equipment.
Adjustable Focal Length: Adapts to varying surface profiles and cleaning requirements.
Smart Control & Positioning Systems
Self-Developed Remote Control: Operate the machine wirelessly via an intuitive interface, enhancing safety and convenience in hazardous environments.
AI-Powered Positioning System: Automatically identifies cleaning areas and optimizes laser paths for consistent results. Supports pre-programmed patterns for repetitive tasks.
Energy Efficiency & Stability
Power Consumption: 25 kW: Balances high performance with energy savings.
380V Industrial Voltage Compatibility: Ensures stable operation in standard factory settings.
Durable Construction
Industrial-Grade Components: Built to withstand harsh environments, including dust, humidity, and temperature fluctuations.
Modular Design: Simplifies maintenance and part replacement.
Technical Specifications
Laser Power: 6000W
Power Supply: 380V AC, 3-phase
Power Consumption: 25 kW
Cleaning Gun Weight: 3.5 kg (with counterbalance arm)
Max Cleaning Length: 6000 mm
Laser Wavelength: 1064 nm (standard)

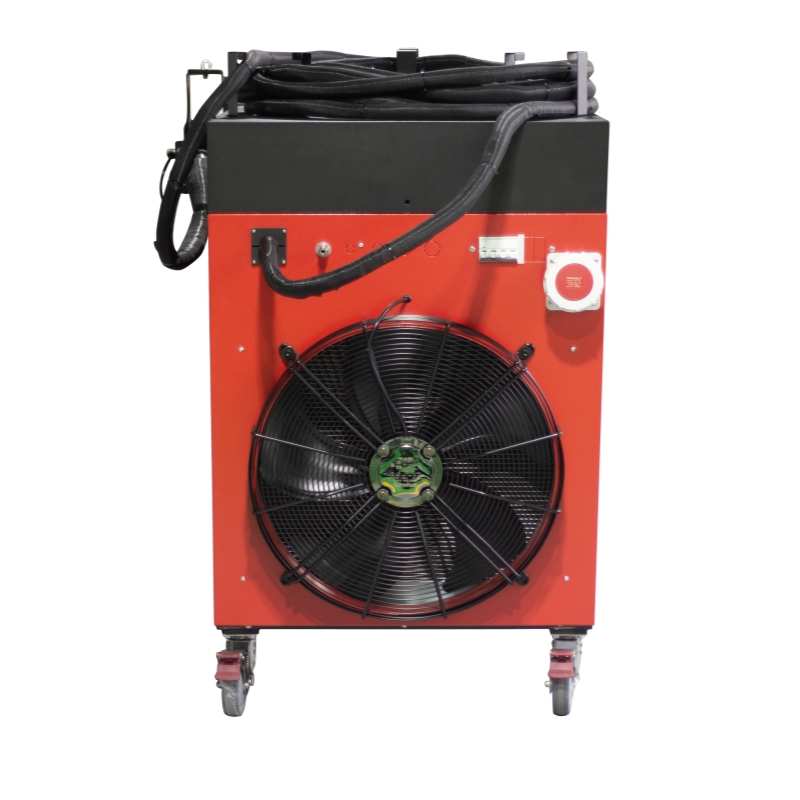

Cooling System: Integrated Water Cooling
Control System: Touchscreen HMI + Remote Monitoring
Positioning Accuracy: ±0.1 mm
Operating Temperature: 0°C to 40°C
Contact Us
For tailored solutions or technical inquiries, reach out to our engineering team to discover how this system can optimize your operations.
